American Coach American Patriot Motor Home Class B - Diesel RVs For Sale
The American Coach American Patriot Class B diesel and gas motorhomes contain luxurious appointments and amenities for a coach that is unmatched in elegance and style! The optional 4x4 drivetrain with high/low gear box is another part of the superior craftsmanship that allows you to explore without reserve.

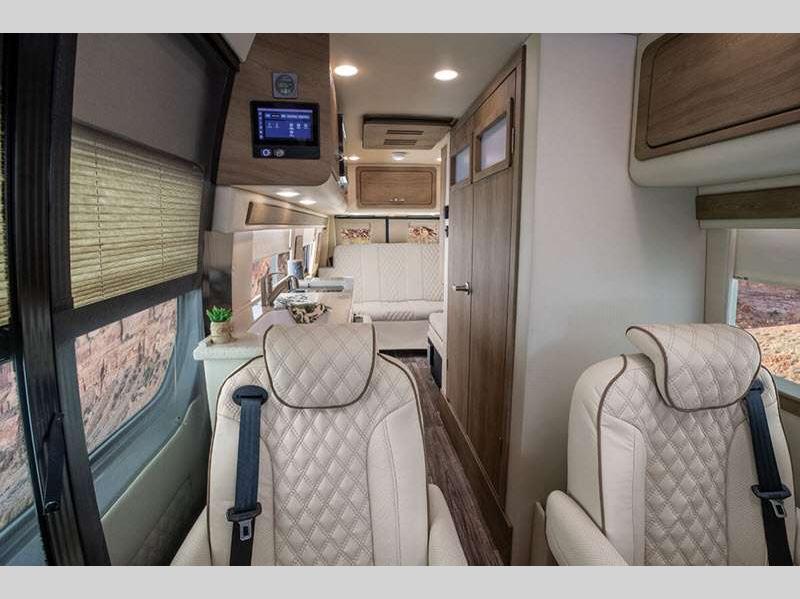

The Lithium Freedom Package is an optional addition on all diesel models and a standard feature on the gas model. This package offers you a 3000W inverter, 12V rooftop A/C, and electric hot water heater. Each American Patriot also comes with a rear backup camera system, an HD digital air TV antenna, a rooftop solar charging system, an exterior shower, under-sofa storage, a complete insulation package, and side and rear screen doors. You'll feel quite high-class as you sit inside your American Patriot enjoying the sophisticated décor surrounding you as well as the Lagun removable table and climate-controlled roof fan.
The American Coach American Patriot Class B diesel and gas motorhomes offer you unmatched elegance and style!
-
American Patriot FD2
American Coach American Patriot Class B diesel motorhome FD2 highlights: Wet ... more about American Patriot FD2
Specifications

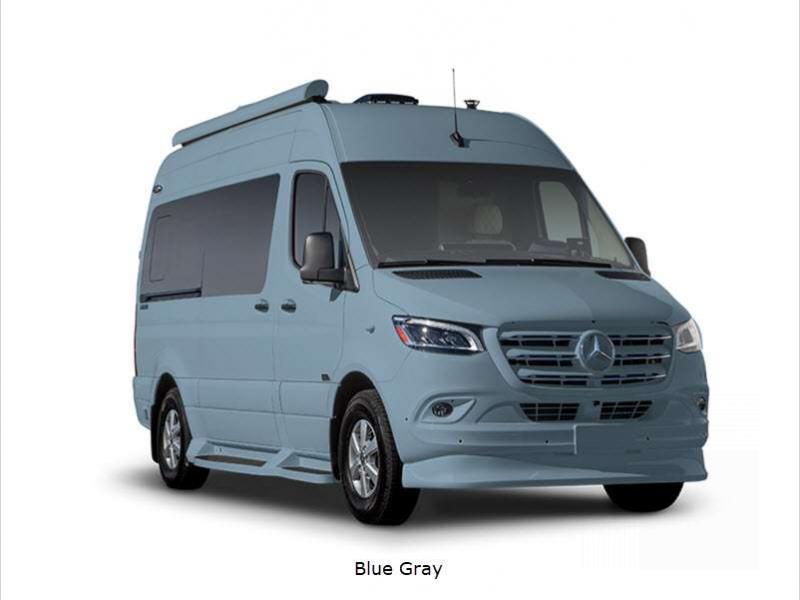

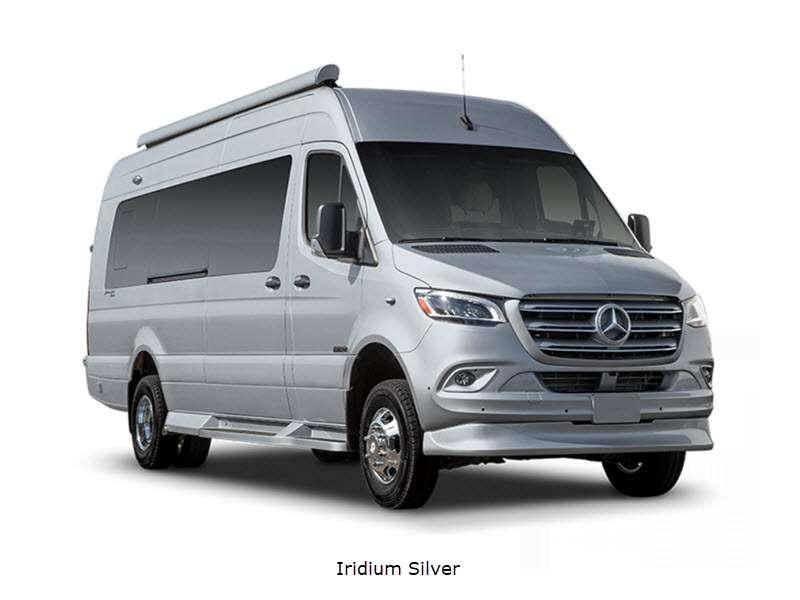

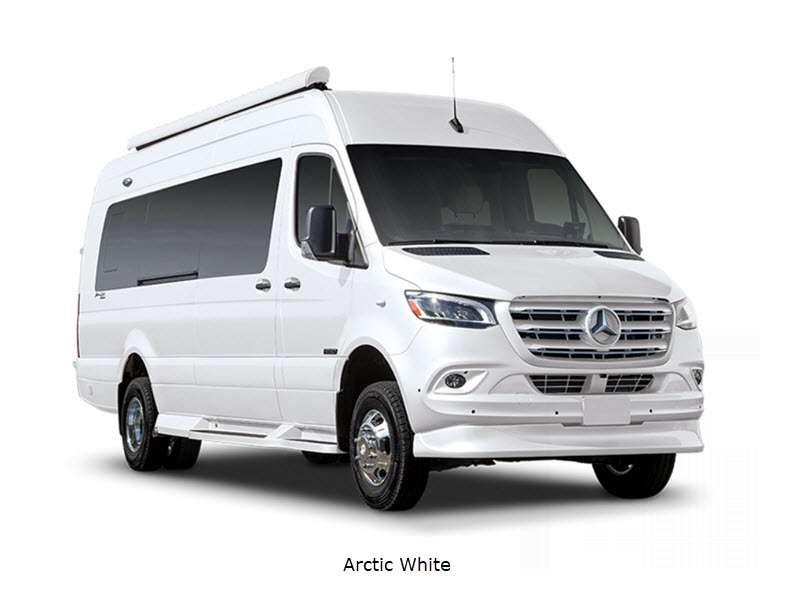

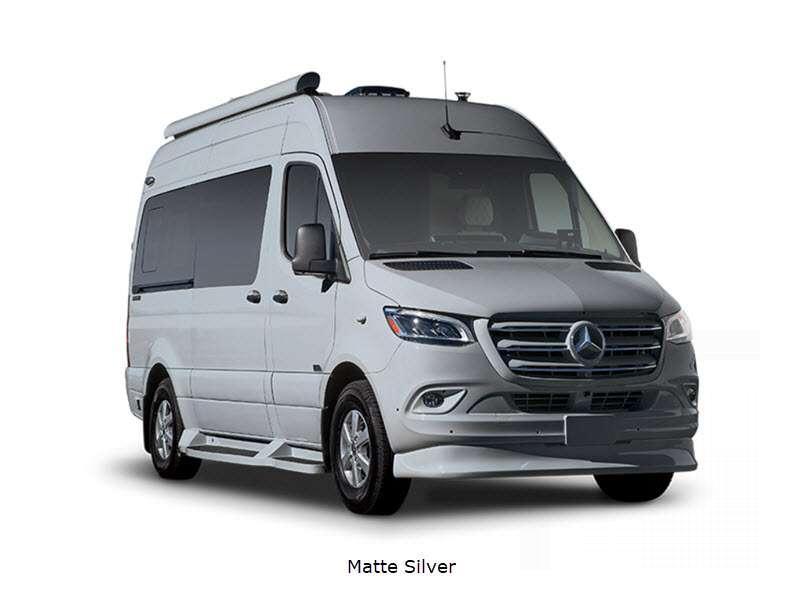

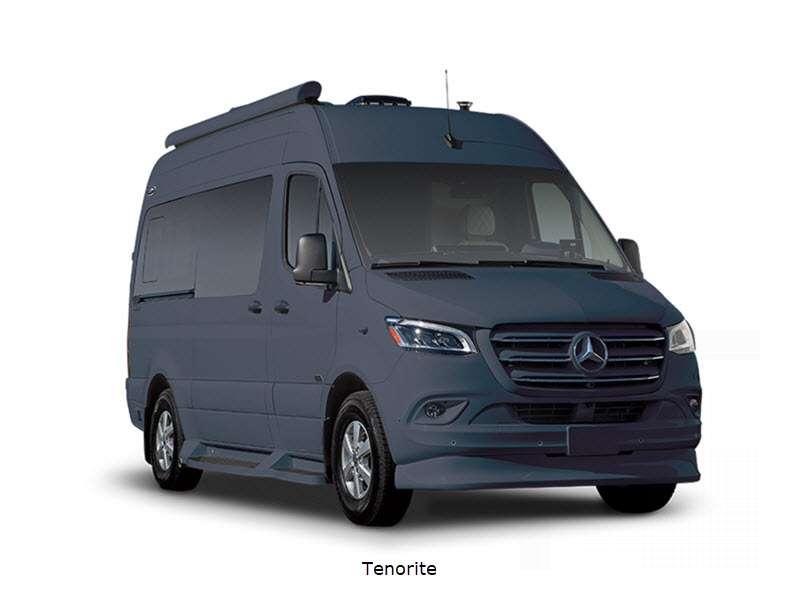

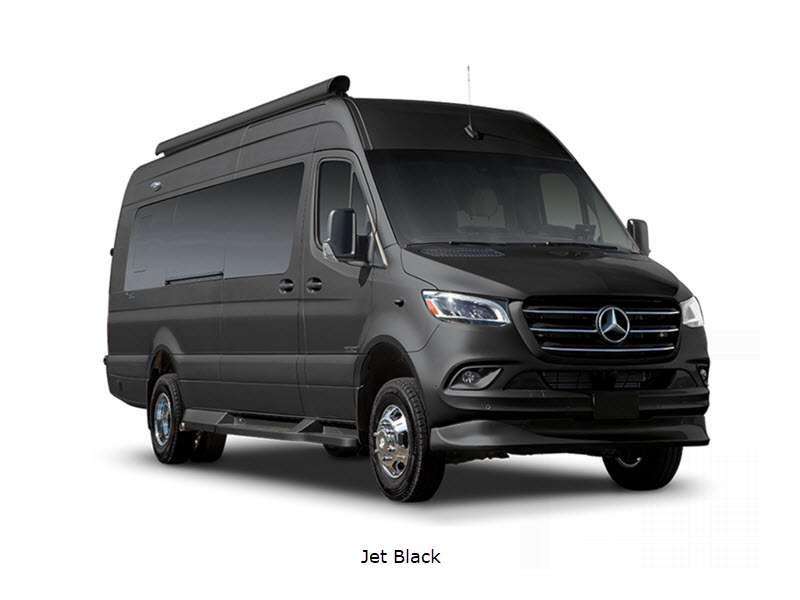

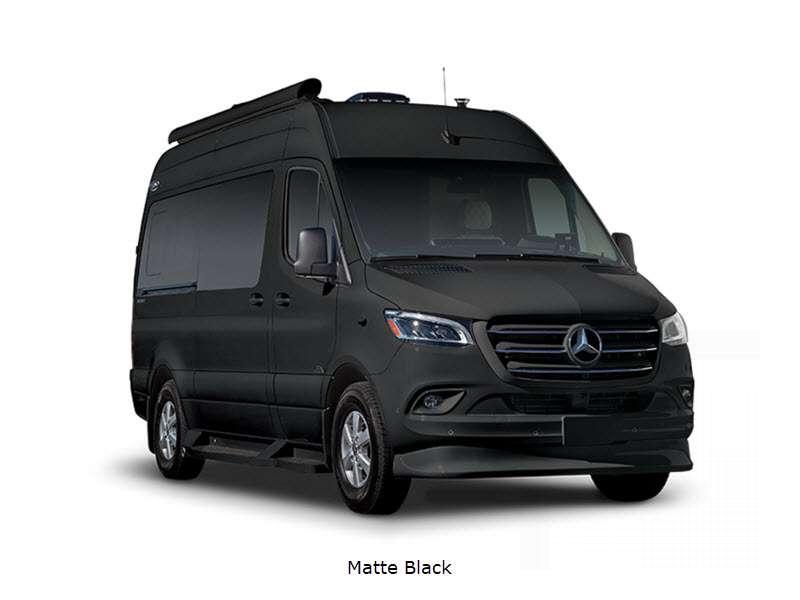

Sleeps 2 Length 19 ft 6 in Ext Width 7 ft 9 in Ext Height 9 ft 10 in Int Height 6 ft 2 in Interior Color Graphite, Milkweed, Sand Exterior Color Arctic White, Iridium Silver, Matte Silver, Blue Gray, Tenorite, Jet Black, Matte Black Hitch Weight 5000 lbs GVWR 9050 lbs Fresh Water Capacity 19 gals Grey Water Capacity 22 gals Black Water Capacity 14 gals Furnace BTU 17000 btu Generator Quiet Tech 2.5kW Propane Fuel Type Diesel Engine 6-Cylinder Chassis Mercedes-Benz Horsepower 188 hp Fuel Capacity 24.5 gals Wheelbase 144 in Torque 325 ft-lb Refrigerator Type Nova Kool Coordinated Front Panel Refrigerator Size 3.5 cu ft Cooktop Burners 1 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 5360 lbs LP Tank Capacity 10 gal. Water Heater Type On Demand AC BTU 13500 btu TV Info Rear 24" LG HDTV Awning Info Power with LED Light Gross Combined Weight 13930 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp -
American Patriot 170 EXT MD2
American Coach American Patriot Class B diesel motorhome 170 EXT MD2 highlights: ... more about American Patriot 170 EXT MD2
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Length 24 ft 2 in Ext Width 8 ft Ext Height 9 ft 11 in Int Height 6 ft 2 in Interior Color Graphite, Milkweed, Sand Exterior Color Arctic White, Iridium Silver, Matte Silver, Blue Gray, Tenorite, Jet Black, Matte Black Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 27 gals Grey Water Capacity 24 gals Black Water Capacity 14 gals Furnace BTU 17000 btu Generator Quiet Tech 2.5kW Propane Fuel Type Diesel Engine 6-Cylinder Chassis Mercedes-Benz Horsepower 188 hp Fuel Capacity 24.5 gals Wheelbase 170 in Torque 325 ft-lb Refrigerator Type Nova Kool Coordinated Front Panel Refrigerator Size 7.3 cu ft Cooktop Burners 1 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 15 gals Water Heater Type On Demand AC BTU 13500 btu TV Info Rear 24" LG HDTV Awning Info Power with LED Light Gross Combined Weight 15250 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp -
American Patriot 170 EXT MD4
American Coach American Patriot Class B diesel motorhome 170 EXT MD4 highlights: ... more about American Patriot 170 EXT MD4
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Length 24 ft 2 in Ext Width 8 ft Ext Height 9 ft 11 in Int Height 6 ft 2 in Interior Color Graphite, Milkweed, Sand Exterior Color Arctic White, Iridium Silver, Matte Silver, Blue Gray, Tenorite, Jet Black, Matte Black Hitch Weight 5000 lbs GVWR 11030 lbs Fresh Water Capacity 27 gals Grey Water Capacity 24 gals Black Water Capacity 14 gals Furnace BTU 17000 btu Generator Quiet Tech 2.5kW Propane Fuel Type Diesel Engine 6-Cylinder Chassis Mercedes-Benz Horsepower 188 hp Fuel Capacity 24.5 gals Wheelbase 170 in Torque 325 ft-lb Refrigerator Type Nova Kool Coordinated Front Panel Refrigerator Size 3.5 cu ft Cooktop Burners 1 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 15 gals Water Heater Type On Demand AC BTU 13500 btu TV Info Rear 24" LG HDTV; Front 32" Samsung HDTV Awning Info Power with LED Light Gross Combined Weight 15250 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp -
American Patriot 170 MD2
American Coach American Patriot Class B diesel motorhome 170 MD2 highlights: ... more about American Patriot 170 MD2
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Length 22 ft 10 in Ext Width 8 ft Ext Height 9 ft 11 in Int Height 6 ft 2 in Interior Color Graphite, Milkweed, Sand Exterior Color Arctic White, Iridium Silver, Matte Silver, Blue Gray, Tenorite, Jet Black, Matte Black Hitch Weight 7500 lbs GVWR 11030 lbs Fresh Water Capacity 27 gals Grey Water Capacity 24 gals Black Water Capacity 14 gals Furnace BTU 17000 btu Generator Quiet Tech 2.5kW Propane Fuel Type Diesel Engine 6-Cylinder Chassis Mercedes-Benz Horsepower 188 hp Fuel Capacity 24.5 gals Wheelbase 170 in Torque 325 ft-lb Refrigerator Type Nova Kool Coordinated Front Panel Refrigerator Size 7.3 cu ft Cooktop Burners 1 Number of Awnings 1 Axle Weight Front 4410 lbs Axle Weight Rear 7720 lbs LP Tank Capacity 15 gals Water Heater Type On Demand AC BTU 13500 btu TV Info Rear 24" LG HDTV Awning Info Power with LED Light Gross Combined Weight 15250 lbs Shower Type Wet/Bath Shower Electrical Service 30 amp
American Patriot Features:
Standard Features (2023)
Interior
- Diesel & Electric Hot Water Heater (Gasoline & Electric Hot Water Heater on FORD MD2)
- 13,500BTU Roof-Top Air Conditioner (12V 20,000BTU Roof-Top Air Conditioner on FORD MD2)
- Diesel & Electric Powered Coach Furnace (Gasoline & Electric Powered Coach Furnace on FORD MD2)
- Lithium Freedom Package (Ford MD2)
- Quiet Tech 2.5KW Propane Generator (N/A FORD MD2)
- 2000 Watt Inverter & Charger (3000 Watt on FORD MD2)
- HDMI Input to Main TV
- Multiple 120V Outlets
- Multiple USB 12V Chargers
- Rear HDTV (Front HDTV on MD4 Floor Plan)

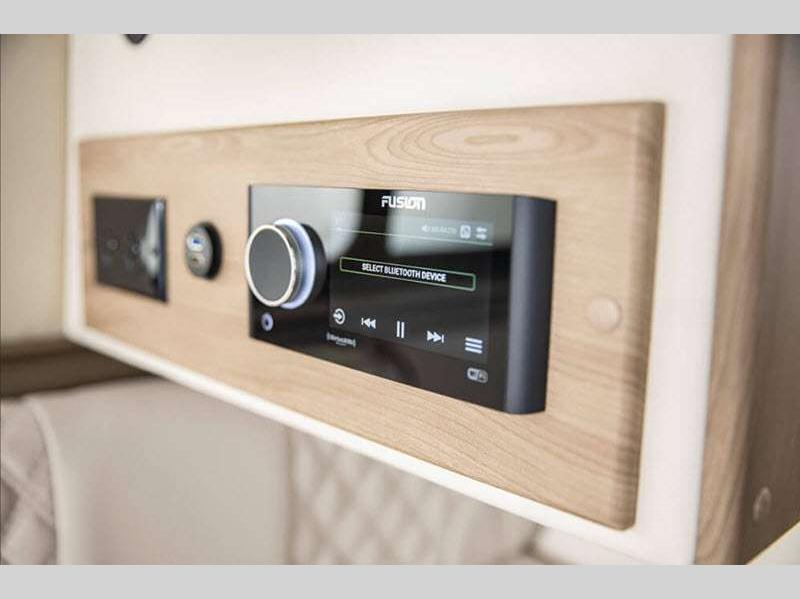

- Rear FM & Bluetooth Radio
- Rear JL Audio Surround Sound System

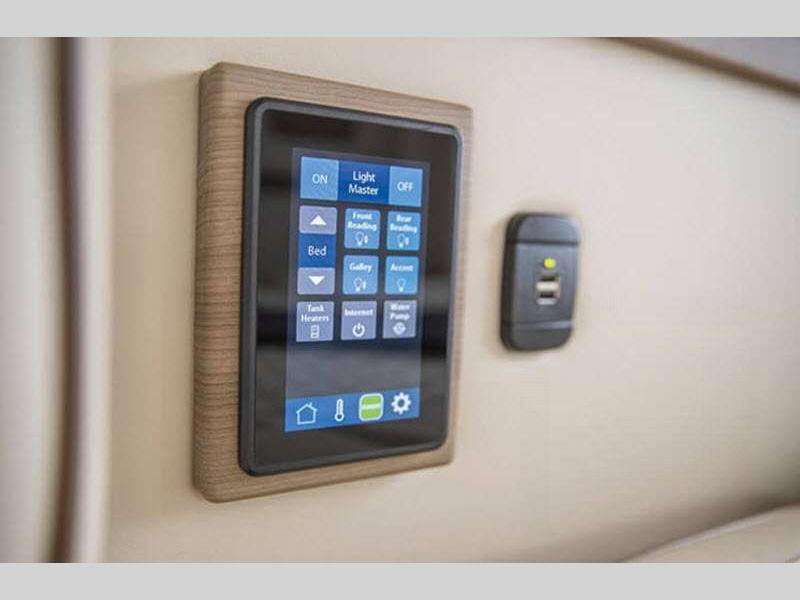

- Digital Touch Screen Coach Control
- Overhead Courtesy Lighting
- Smoke, Propane, Carbon Dioxide Detectors
- Fire Extinguisher
- Climate Controlled Roof Fan

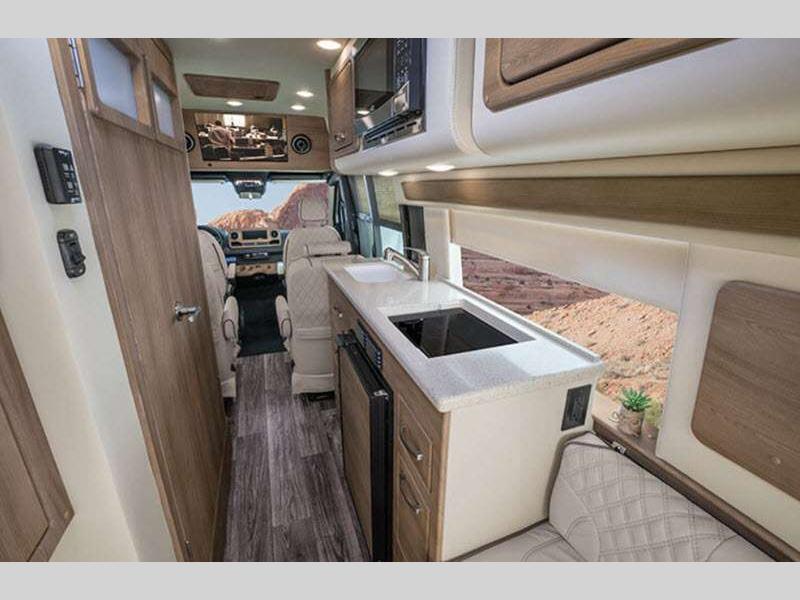

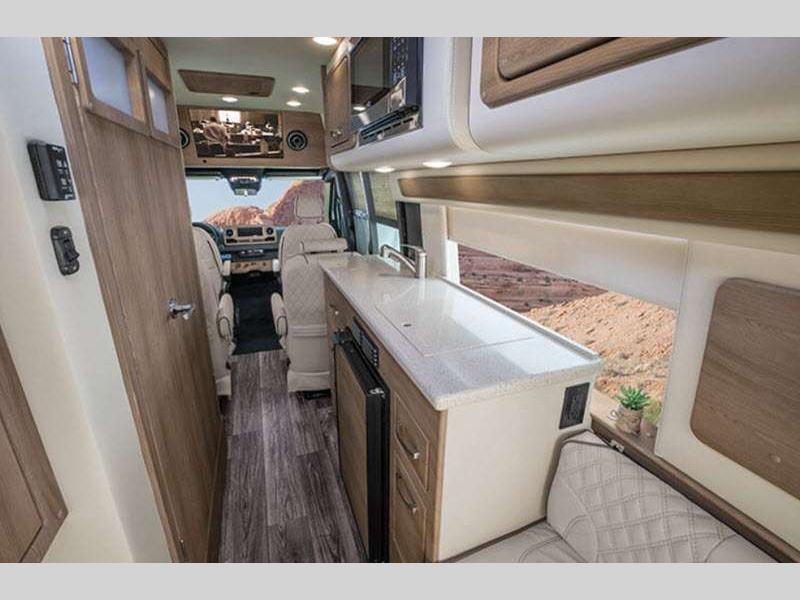

- Solid Surface Counter Tops

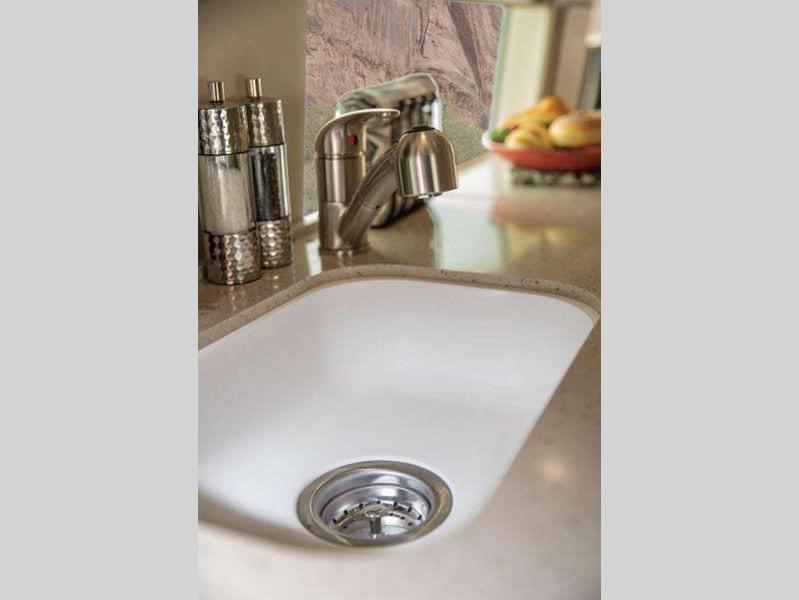

- Molded Sink with Flush Mount Cover
- Recessed Cook Top (Induction Cook Top on FORD MD2)

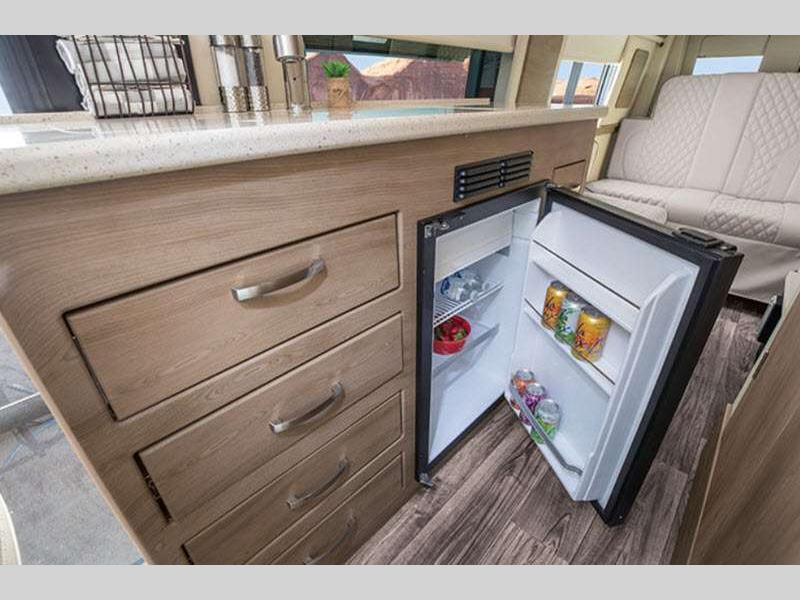

- Coordinated Front Panel Refrigerator (7.3 Cubic Feet Refrigerator 12V & 120V)
- Stainless Steel Microwave

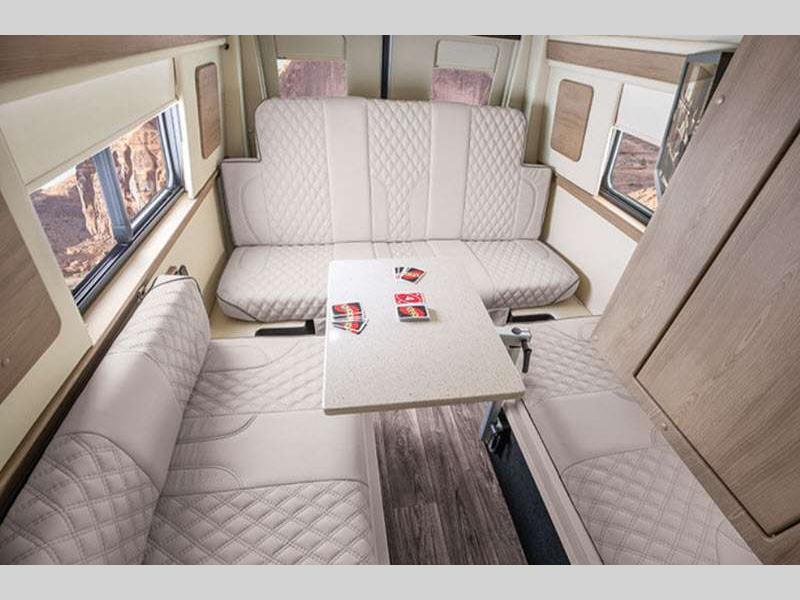

- Lagun Removable Table
- Dove Tail Drawers with Residential Soft Close Slides
- Cabinets and Wardrobe with Hidden Hinges
- Soft Touch Automotive Color Keyed Walls and Headliner
- Composite Seamless Flooring
- Valances with Wood Inlay and Indirect Lighting
- Coordinated Door Panels

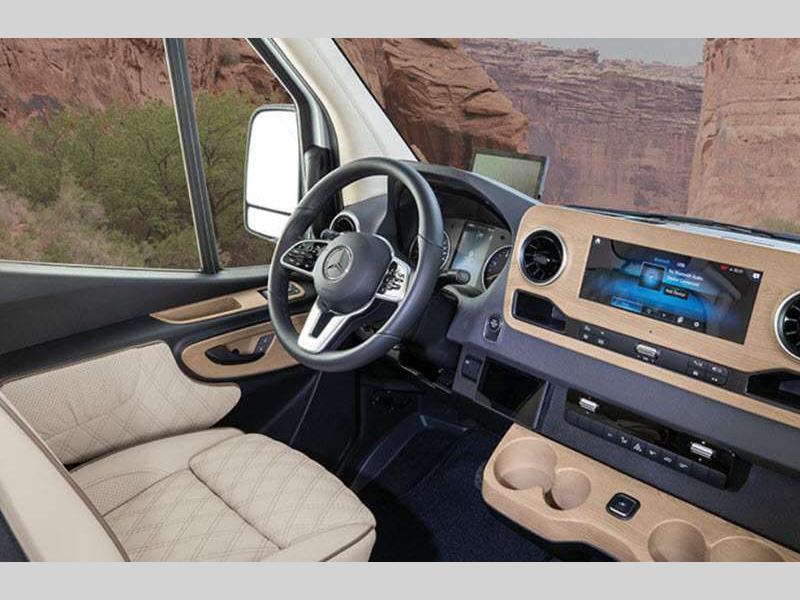

- Custom Dash and Door Handle with Wood Grain
- Custom Front Floor Mats with Non-Slip Rubber Backing

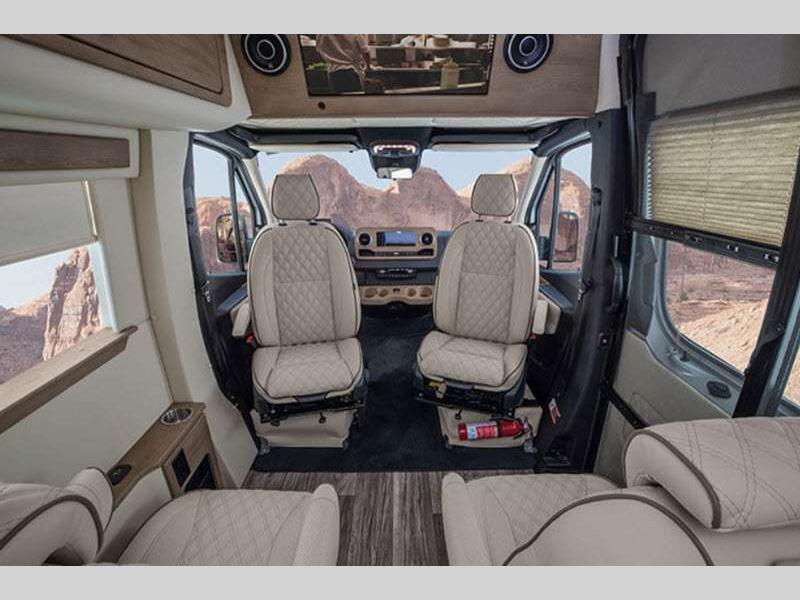

- Driver and Passenger Deluxe Seating Recover & Swivel Pedestals
- Rear Captain Chairs With Swivel & Slide Pedestals (MD4 Only)
- Fold Down Computer & Writing Table for Driver (MD2 Only)
- Custom Seating with Seat Belts
- Interior Entrance Grab Handle

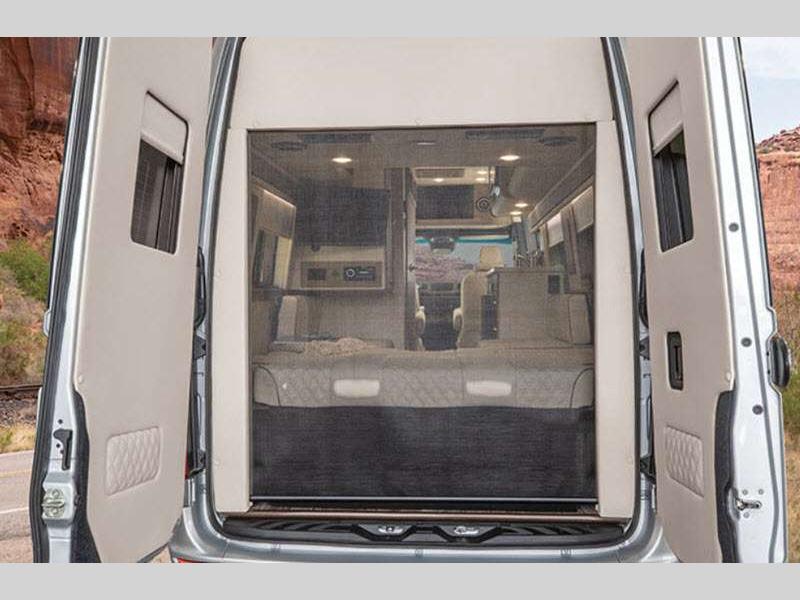

- Side and Rear Screen Doors

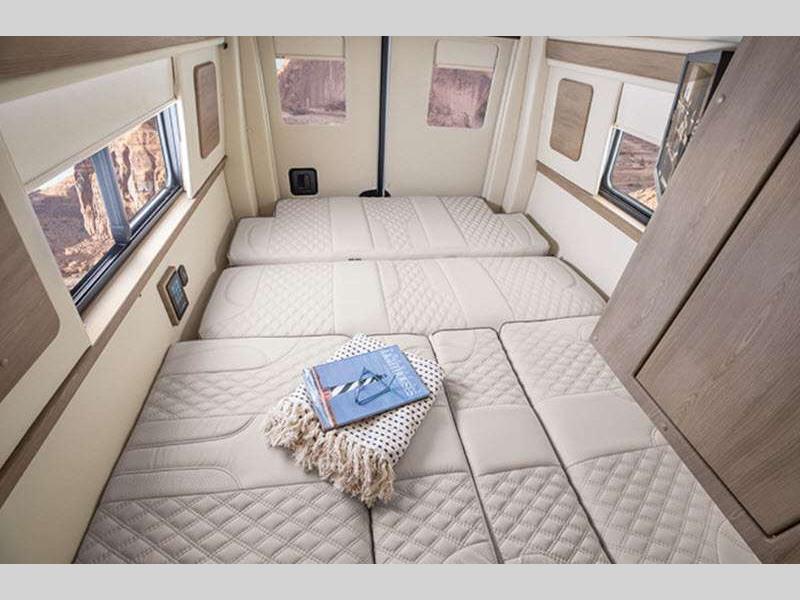

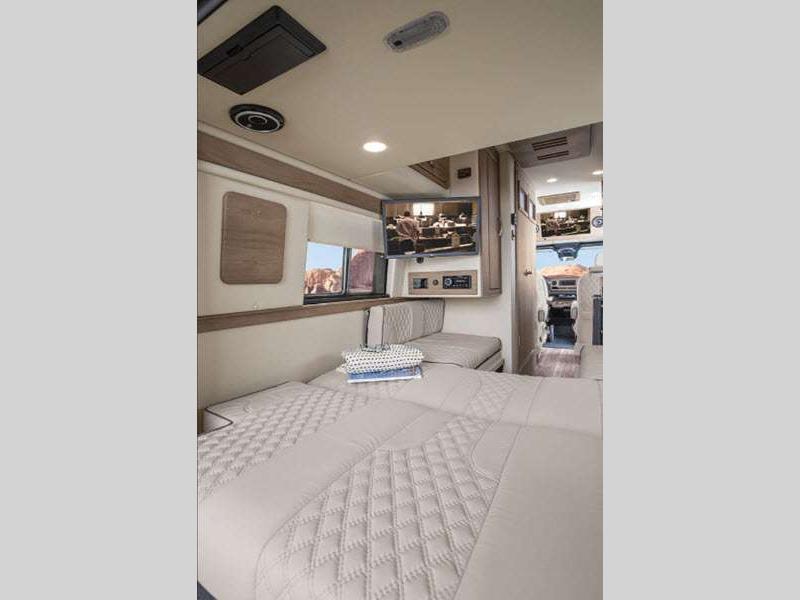

- Power Folding Rear Sofa Bed
- Under Sofa Storage
- Complete Insulation Package

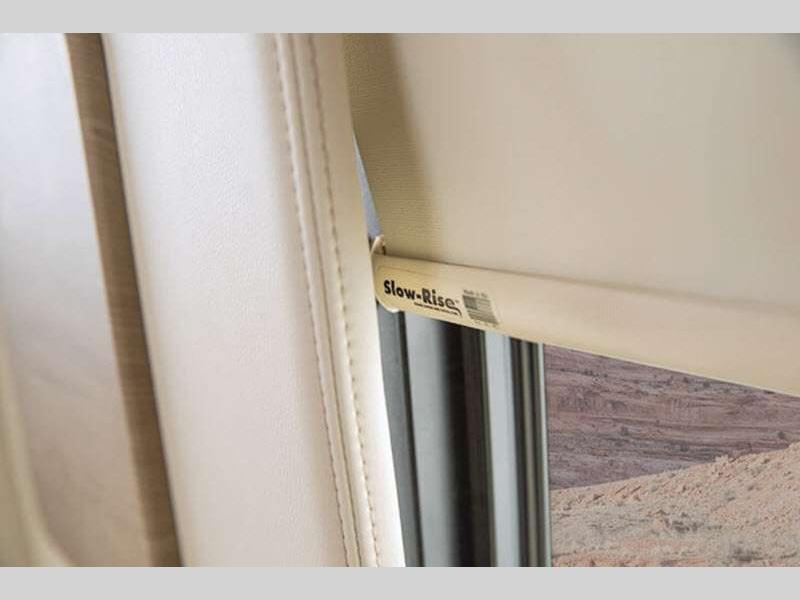

- Complete Privacy Shade Package
- Front Window Privacy Night Shades

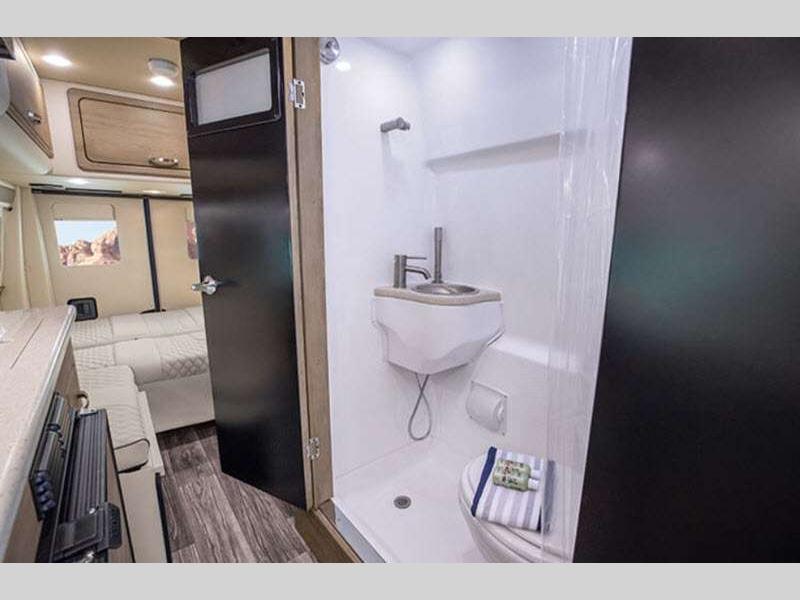

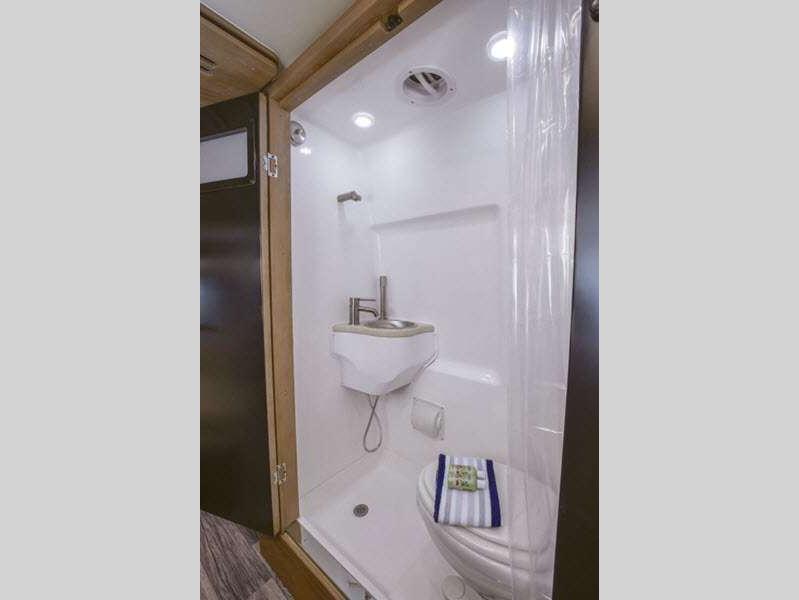

- Shower with Dual Entry Solid Doors with Portal Windows

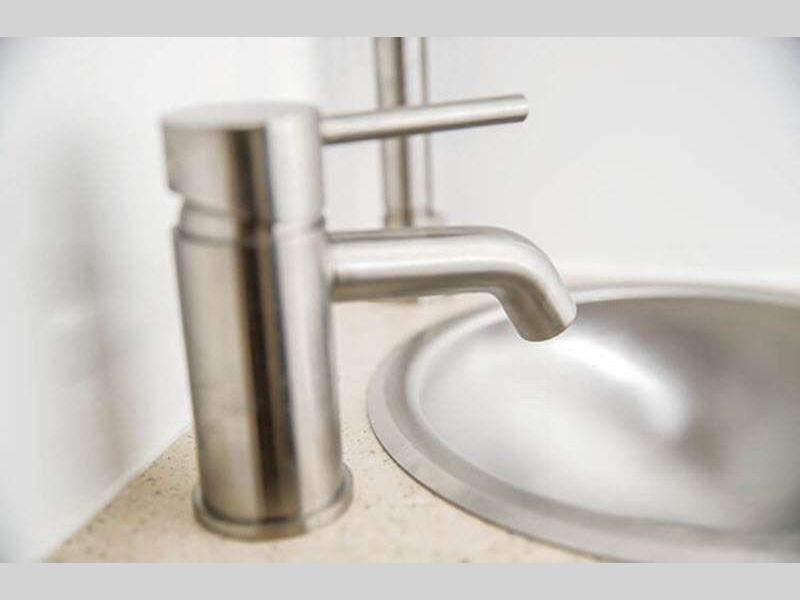

- Solid Surface Sink in Bath
- Retractable Clothes Line
- Shower Curtain
- Porcelain Toilet
- Power Bath Vent
- Heating Pads for Fresh and Grey Holding Tanks
- Sani Flush for Black and Grey Holding Tanks
- Fresh Holding Tank
- Grey Holding Tank
- Black Holding Tank
Exterior
- Tinted Side and Rear Windows
- Rear Slider Screened Windows (N/A FORD MD2)
- Color Keyed Bumpers and Body Moldings
- Rear Hitch with Wiring Package
- Upgraded Sumo Suspension (N/A FORD MD2)
- Aluminum Wheels
- Rear Back-Up Camera System
- Power Awning with LED Light
- LED Patio Light
- 120V Outlet
- HD Digital Air TV Antenna
- Roof-Top Solar Charging System (320 Watt on FORD MD2)
- Molded Low Profile Spoiler (FORD MD2)
- Dual Battery Charging System
- 330Ah House Battery (70Ah on FD2) (N/A FORD MD2)
- 600Ah Lithium Battery Package (FORD MD2)
- 30Amp Shower Line Power Plug
- 15.1gal Propane Tank (10gal on FD2) (N/A FORD MD2)
- All-In-One Utility Bay (N/A FORD MD2)
- Cable TV Input (N/A FORD MD2)
- Fresh Water Fill (N/A FORD MD2)
- Exterior Shower
- Macerator Pump with Power Gates and Hose Reel (N/A FORD MD2)
Options
- New Molded Low Profile Spoiler (Standard on FORD MD2)
- Seat Heat & Massage for All Captains

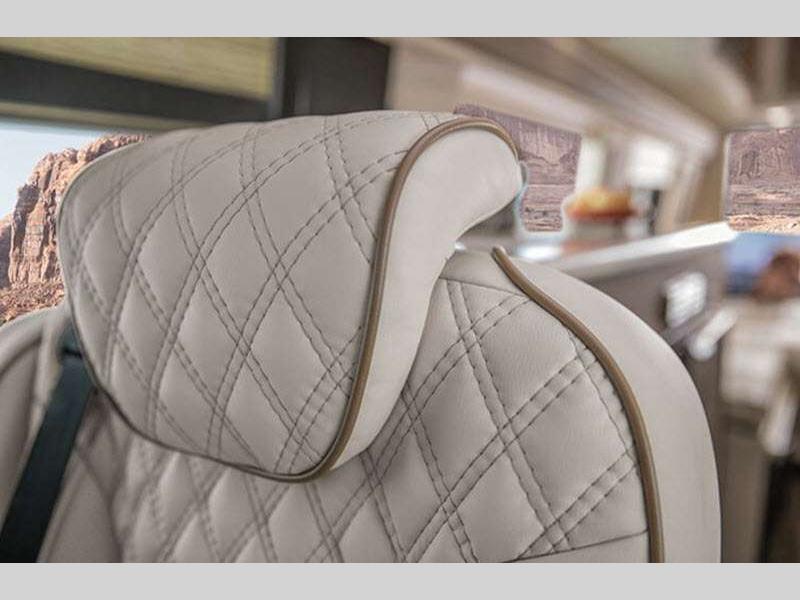

- SLS Diamond Seating Pattern (Optional)
- Surround View Camera System with Monitor (N/A FORD MD2)
- Wireless Internet Router & Apple TV
- 1080Ah Lithium Freedom Package (3000 Watt Inverter, 12V Roof-Top AC, Removes Generator and Propane)
- Complete Roof Rack with Ladder (N/A FORD MD2)
- Air Ride Suspension (170 MD2, 170 EXT MD2, 170 EXT MD4)
- 4x4 Drivetrain with High/Low Gear Box (N/A FORD MD2)
- All Terrain Tires & Black Rims (N/A FORD MD2)
- Legacy Edition Package: (Weaved Flooring, Rain Glass Shower Door, Power Window Shades) (Optional) (N/A FORD MD2)
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
